Magnetite Particles: The Real Sources of This Neurotoxic Pollutant

1.1 What is magnetite?

Magnetite is a strongly magnetic iron oxide. Its iron comes in two forms, Fe2+ and Fe3+. Its chemical formula is Fe3O4.

Air pollution can carry magnetite as tiny particles. A nanometre is one billionth of a metre. Many airborne magnetite particles are smaller than 200 nanometres.

India’s air rules count particles by size class. PM10 means particles smaller than 10 micrometres. A micrometre is one millionth of a metre. So a 200 nanometre particle is 0.2 micrometres. The PM10 cut-off of 10 micrometres is 10,000 nanometres, and 10,000 divided by 200 is 50.

1.2 Which sources make magnetite particles?

Pollution magnetite forms when iron-rich material gets very hot. The heat comes from burning or from friction. Exams name three sources.

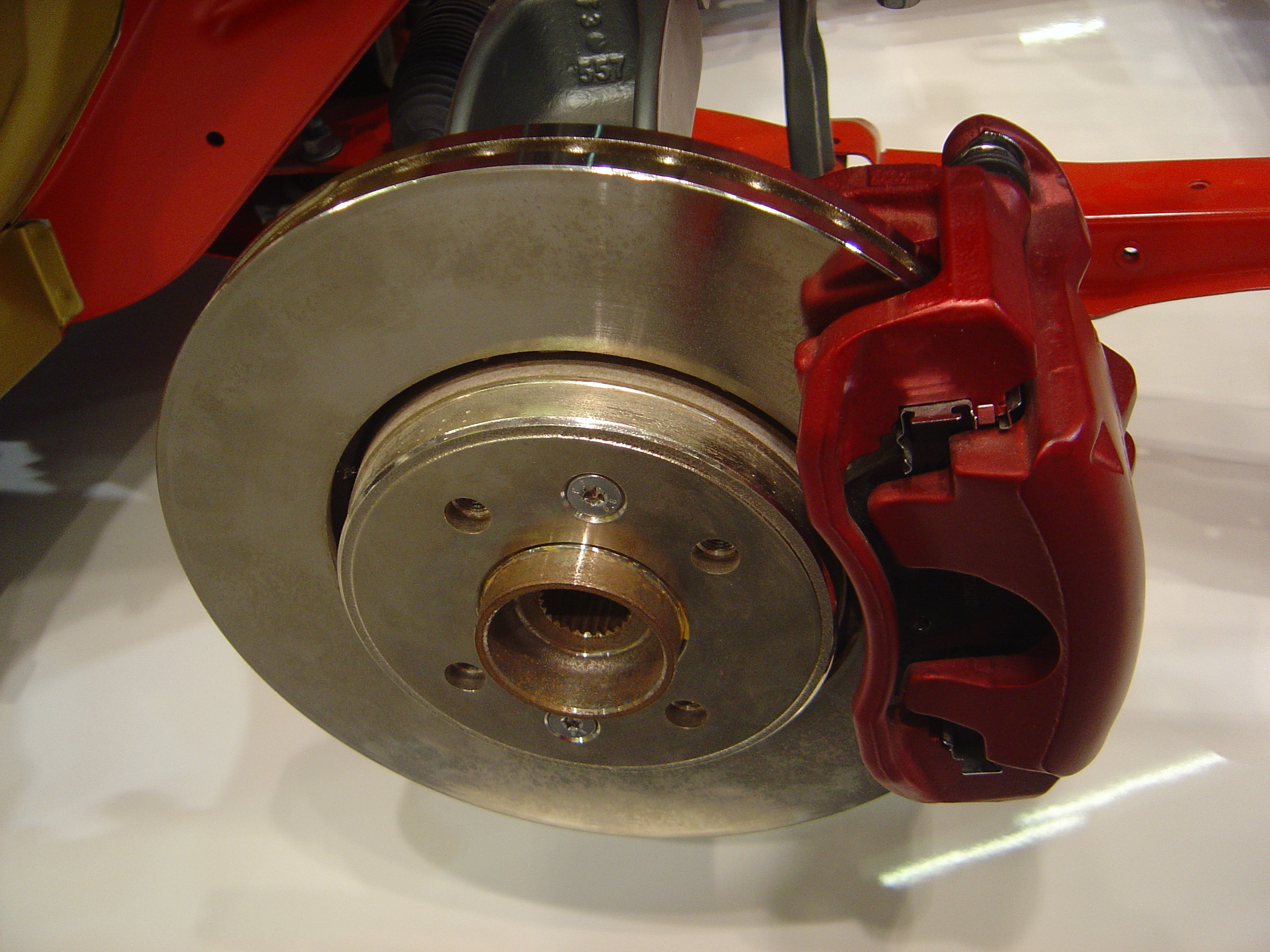

• Vehicle brakes. Frictional heating of brake pads can produce high-temperature magnetite nanoparticles.
• Vehicle engines. Magnetite nanoparticles are produced in high-temperature combustion, including vehicle tailpipe emissions.
• Power plants. Coal-burning power plants are among the prolific sources of airborne magnetic nanoparticles.

A lab study of coal fly ash from a pulverised-fuel boiler found magnetite and maghemite to be the dominant phases in its X-ray pattern.

1.3 Which two options are wrong?

UPSC’s 2021 question listed five items. The official key picks brakes, engines and power plants. It leaves out microwave stoves and telephone lines.

The key gives only the option letter, not reasons. The studies tie pollution magnetite to combustion and friction heating. Use that as your memory hook.

2.1 What did the 2016 study do?

Barbara Maher of Lancaster University led the team. Their paper appeared in PNAS in 2016. They studied the frontal cortex of 37 human brain samples.

• Mexico City: 29 cases, aged 3 to 85 years.
• Manchester, UK: 8 cases, aged 62 to 92 years.

They used magnetic tests and electron microscopes. The goal was to see what kind of magnetic particles the tissue held.

2.2 What did they find?

They found abundant magnetite nanoparticles. Many matched high-temperature formation. The authors said that points to an external source, not an internal one.

The particles were often found with other transition metal nanoparticles. They had rounded shapes and fused surfaces. That fits crystals cooling after heating in an iron-bearing source.

2.3 How do particles that small get into the brain?

The paper says magnetite particles smaller than about 200 nanometres can enter the brain directly through the olfactory bulb. That is the part of the brain that receives signals from the smell nerve.

A 2025 review adds a general point. Nanoparticles breathed in through the nose may travel along the olfactory and trigeminal nerves. That route bypasses the blood-brain barrier entirely. The review says rodent studies have shown this.

3.1 What shape is the body's own magnetite?

Brain magnetite was first reported more than 20 years before the 2016 study. It has angular crystal shapes, called euhedral, such as cubo-octahedral or prismatic forms.

These crystals are thought to form by biological processes. The paper says this may happen inside the cores of ferritin, an iron storage protein. Those cores are about 8 nanometres wide.

3.2 What shape does pollution magnetite have?

Pollution magnetite looks different. In the 2016 samples it was rounded, even spherical. Its surfaces looked fused.

The authors link these shapes to crystallisation as an initially heated, iron-bearing material cools. Their particles ranged from 10 to 150 nanometres across. The median longest diameter was 18 nanometres.

Angular crystals were also seen, but only relatively very rarely. The paper attributes those to the body’s own formation.

3.3 Which other metals are found alongside it?

The same samples held other transition metal nanoparticles. The paper names platinum, nickel and cobalt, and possibly copper.

The authors tie platinum release to the rising use of catalytic converters in vehicles. A catalytic converter is a pollution-control device in a vehicle exhaust.

4.1 What is already clear?

The 2016 finding stands. Rounded, pollution-type magnetite particles were present in human brain tissue.

A 2021 study used tissue from the Manchester Brain Bank. All the elderly brains held non-physiological metals such as lead and cerium. The authors suggest this points to environmental particles entering the brain in everyone.

4.2 What is still open?

The 2016 authors only said the exposure “might need to be examined” as a hazard. They noted that earlier work had reported a link between brain magnetite and Alzheimer’s disease.

The 2021 study tested that link. It measured 147 samples of brain tissue from people aged 80 to 98.

Magnetite and maghemite levels varied between people and brain regions. The authors found no significant difference between Alzheimer’s and non-Alzheimer’s cases.

4.3 What about brain cancer?

A 2024 study in Scientific Reports followed 1.29 million people in Montreal and Toronto. It used the Canadian Census Health and Environment Cohort. About 1,300 had a malignant brain tumour called glioma.

The team measured a magnetic signal in outdoor PM2.5 samples as a stand-in for magnetite nanoparticles. It was not associated with brain tumour incidence (hazard ratio 0.998). The authors say more research is needed.

5.1 What did the 2021 question ask?

The Civil Services Preliminary Examination 2021 asked about magnetite in Question 25 of General Studies Paper I. The stem called the particles “suspected to cause neurodegenerative problems”. It listed five possible sources.

• UPSC CSP 2021, Q25 UPSC CSP 2021 GS Paper I, Q25. Official paper: question paper, Series A. Official key: option (b), 1, 2 and 4 only.

The four options were:

• (a) 1, 2, 3 and 5 only
• (b) 1, 2 and 4 only
• (c) 3, 4 and 5 only
• (d) 1, 2, 3, 4 and 5

5.2 How should you reason about such a question?

• Ask whether the item involves burning or friction at high heat.
• Brakes, engines and power plants all do. The key picks them.
• Do not stretch the key with your own logic. Learn the three sources as the official answer.

What else could be asked? Expect questions on what magnetite is, how particles reach the brain, and what Euro 7 limits.

6.1 What does Euro 7 regulate?

Euro 7 is the European Union’s vehicle emissions rule, Regulation (EU) 2024/1257 of 24 April 2024. It covers tailpipe emissions, battery durability and non-exhaust emissions.

The rule defines “brake particle emissions” as the particles emitted from a vehicle’s brake system. The European Commission says Euro 7 will regulate emissions from tyres and brakes for the first time worldwide.

6.2 What are the brake limits?

The limits are in milligrams per kilometre of PM10. They cover cars and light vans in categories M1 and N1. N1 Class III vans are excluded (Table 4 footnote).

So even a pure electric car gets a brake limit. The tighter 3 mg/km applies to every type of car from 2035, subject to the Article 18(5) review. Limits for 2030 to 2034 are set after a review under Article 18(5).

6.3 How small a particle does Euro 7 count?

Since 2011, EU rules for light-duty vehicles have controlled exhaust particles larger than 23 nanometres. Euro 7 applies particle limits down to 10 nanometres.

Euro 7 defines this “PN10” count for particles from the tailpipe or the brakes. It is a count of solid particles, not only their weight.

6.4 When does Euro 7 start?

• From 29 November 2026, authorities must refuse approval to new types of cars and light vans that do not comply.
• From 29 November 2027, non-compliant new vehicles can no longer be registered or sold.

7.1 What do India's air standards cover?

The Central Pollution Control Board notified the National Ambient Air Quality Standards on 18 November 2009. The table lists 12 pollutants. It sets limits for particles by mass concentration, in micrograms per cubic metre.

• PM10: 60 annual, 100 over 24 hours.
• PM2.5: 40 annual, 60 over 24 hours.
• These are the limits for industrial, residential, rural and other areas.

The table has no entry for magnetite or for nanoparticle counts. The US Environmental Protection Agency also writes its PM2.5 and PM10 limits as concentrations in micrograms per cubic metre.

7.2 What makes magnetite hard to control?

• Levels vary a lot. Ripley and colleagues note that outdoor magnetite nanoparticle levels vary within cities much more than PM2.5 mass does.
• Sources are mixed. They include tailpipes, brake wear, industry, coal-burning power plants and indoor emissions such as open fires.
• The health link is unsettled, as card 4 showed.

Euro 7 now limits brake particles and counts particles down to 10 nanometres.
