Alai Darwaza and the True Arch

For over a century, India’s “arches” weren’t really arches at all. This article covers the Alai Darwaza, the gateway that perfected that technology in stone. It also covers the emperor who never lived to finish his bigger ambition next door.

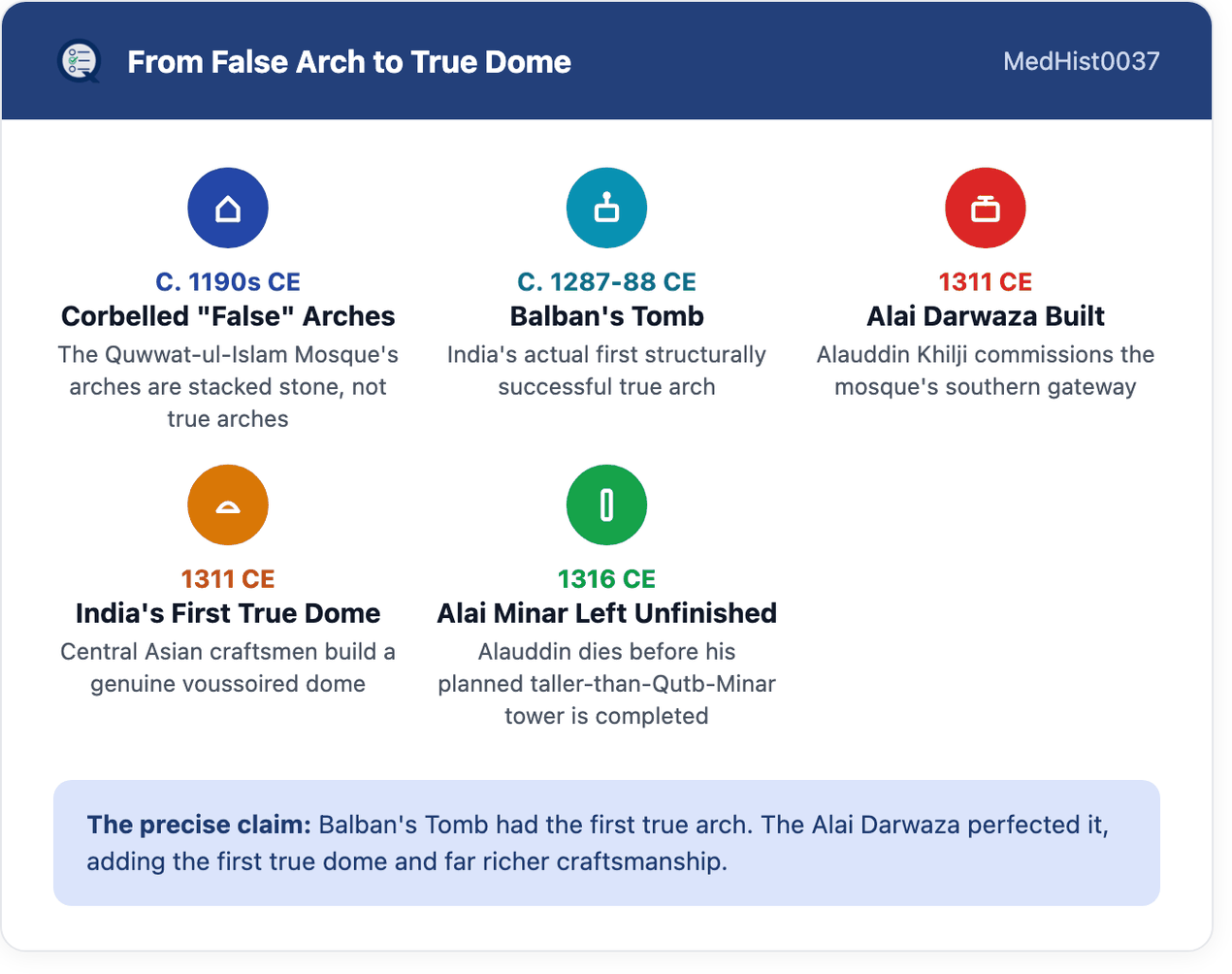

From False Arch to True Dome

MedHist0037

C. 1190s CE

Corbelled “False” Arches

The Quwwat-ul-Islam Mosque‘s arches are stacked stone, not true arches

C. 1287-88 CE

Balban’s Tomb

India’s actual first structurally successful true arch

1311 CE

Alai Darwaza Built

Alauddin Khilji commissions the mosque’s southern gateway

1311 CE

India’s First True Dome

Central Asian craftsmen build a genuine voussoired dome

1316 CE

Alai Minar Left Unfinished

Alauddin dies before his planned taller-than-Qutb-Minar tower is completed

The precise claim: Balban’s Tomb had the first true arch. The Alai Darwaza perfected it, adding the first true dome and far richer craftsmanship.

⬇ Download as image

Timeline

• Around 1190s CE: The Quwwat-ul-Islam Mosque’s arched screen is built by corbelling, stacking stones so the inner edges look arch-like. Local Hindu craftsmen were unfamiliar with true arch construction.
• c. 1287-1288 CE: Balban’s Tomb becomes India’s earliest known building where a true, voussoir-based arch was used successfully.
• 1311 CE: Alauddin Khilji commissions the Alai Darwaza as the mosque’s southern gateway.
• 1311 CE: Central Asian master craftsmen build the Alai Darwaza’s arches from true stone voussoirs. It becomes India’s first true dome.
• 1316 CE: Alauddin Khilji dies before completing the Alai Minar, a planned tower meant to stand taller than the Qutb Minar. Only its rubble core survives.

The Gateway That Perfected the ArchNeed to Know

• The Alai Darwaza was built in 1311 CE under Alauddin Khilji. It serves as the southern gateway of the Quwwat-ul-Islam Mosque in Delhi’s Qutb complex.
• It is built from red sandstone and is a square, domed gatehouse with arched entrances on each side.
• Its arches are made from true stone voussoirs, unlike the earlier mosque screen’s corbelled, false arches. It holds India’s first true dome.
• The Alai Darwaza is often called India’s first true arch, but that is not quite precise. Balban’s Tomb, built around 1287-1288 CE, achieved a structurally successful true arch roughly 23 years earlier.
• What the Alai Darwaza actually pioneered was the first true dome, plus a far more mature, fully successful, and decoratively rich use of the technique.
• Alauddin brought in Turkic master craftsmen from Central Asia to build it, marking a genuine technological leap in Indian construction.
• Alauddin also began the Alai Minar, intended to be taller than the Qutb Minar. He died in 1316 CE before it was completed, leaving only an 80-foot rubble core.

Craftsmanship and CorrectionGood to Know

• The Quwwat-ul-Islam Mosque’s earlier corbelled arches were built without true arch construction. See ArtnCulture0031 — The Qutb Minar and Quwwat-ul-Islam Mosque for that earlier phase.
• The Alai Darwaza’s true arches also function internally as squinches. A squinch is a structural technique that transitions a square base into an octagonal shape, supporting the dome above.
• Inside, the dome uses muqarnas squinches, stacked stalactite-like tiers of stonework, to carry that transition from octagon to circle with real visual depth.
• The red sandstone exterior is inlaid with white marble, in a technique close to later pietra dura work, forming borders and geometric motifs across the surface.
• Marble jali lattice screens fill the windows, cut into star-and-hexagon and interlacing-octagon patterns. Quranic verses in Naksh script run in carved bands around the gateway.
• The gateway is often called the earliest monument of pure classical Islamic architectural style in India. That marks a real break from the earlier, hybrid Qutb-era construction.

Test Yourself

Please wait…

1. The Alai Darwaza was built in 1311 CE under which Delhi Sultan?

Alauddin Khilji

Balban

Ghiyasuddin Tughlaq

Iltutmish

 Loading…



A Technology’s Slow ArrivalGreat to Know

• The century between the Qutb complex and the Alai Darwaza shows something important. Construction knowledge transferred slowly, not instantly, with conquest. Political control of Delhi changed hands well before genuine Islamic building techniques did.
• Bringing in craftsmen specifically from Central Asia was a deliberate choice, not an accident. Alauddin apparently recognised that local masons, however skilled at corbelling, could not simply improvise their way to a true arch.
• The Alai Minar’s unfinished rubble core is its own kind of evidence. Ambition alone, even backed by an empire’s resources, could not outrun a ruler’s own mortality.
• The mosque screen’s corbelled arches and the Alai Darwaza’s true arches sit side by side in the same complex. Together, they offer a rare before-and-after view of one technology actually arriving in India.
• Getting the “first” claim right matters. Balban’s Tomb, the Alai Darwaza, and the century of corbelling before them together tell a more accurate, more interesting story than any single “first” ever could alone.
